✅ Overview

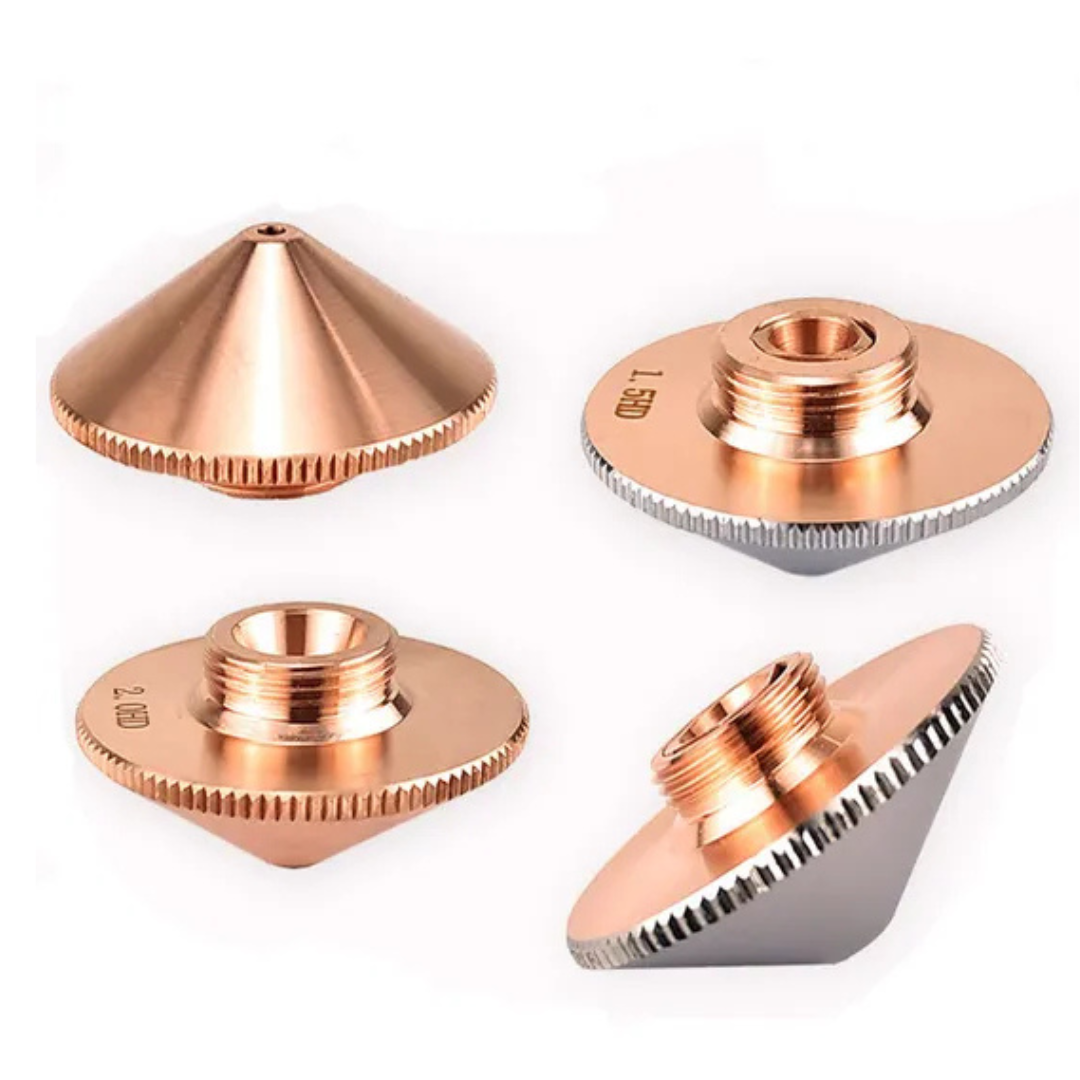

The cone-shaped laser cutting nozzle is designed to focus assist gas precisely at the laser cutting point, improving cut quality and minimizing dross on materials like mild steel, stainless steel, and aluminum. Compatible with most laser cutting heads (Raytools, WSX, Precitec, etc.), it ensures smooth, high-speed cutting performance.
⚙️ Key Features
-
Shape: Tapered/Cone for narrow gas flow and high-pressure delivery
-
Material: High-purity Copper / Chrome-Plated Copper
-
Compatibility: Raytools, WSX, Precitec, Ospri and other standard laser heads
-
Design: Single or double-layered depending on cutting material
-
Available Diameters: 0.8mm / 1.0mm / 1.2mm / 1.5mm / 2.0mm
-
Connection Thread: M11 / M14 / Custom (as per model)
-
Coating (Optional): Nickel/Chrome plating for longer lifespan
📋 Specifications Table
| Parameter | Description |
|---|---|
| Nozzle Type | Cone Shape (Single or Double Layer) |
| Orifice Diameter | 0.8mm – 2.0mm |
| Thread Size | M11 / M14 |
| Material | Copper or Chrome-plated Copper |
| Assist Gas | Oxygen, Nitrogen, Air |
| Application | Laser cutting of MS, SS, AL, Brass |
🛠️ Applications
-
High-speed cutting of carbon steel, stainless steel, aluminum
-
Precision contour cutting
-
Suitable for use with Raytools, WSX, Precitec, Au3tech, etc.
-
CNC fiber laser cutting machines from 500W to 20kW+
🔧 Benefits
-
Focused gas jet improves edge quality and reduces burrs
-
Cone shape allows deeper penetration and narrow kerf
-
Durable material withstands high temperatures
-
Easy to install and replace on standard nozzles seats
Let me know if you’d like product images, nozzle size recommendations, or a comparison between flat vs cone nozzles for different materials.
