✅ Overview

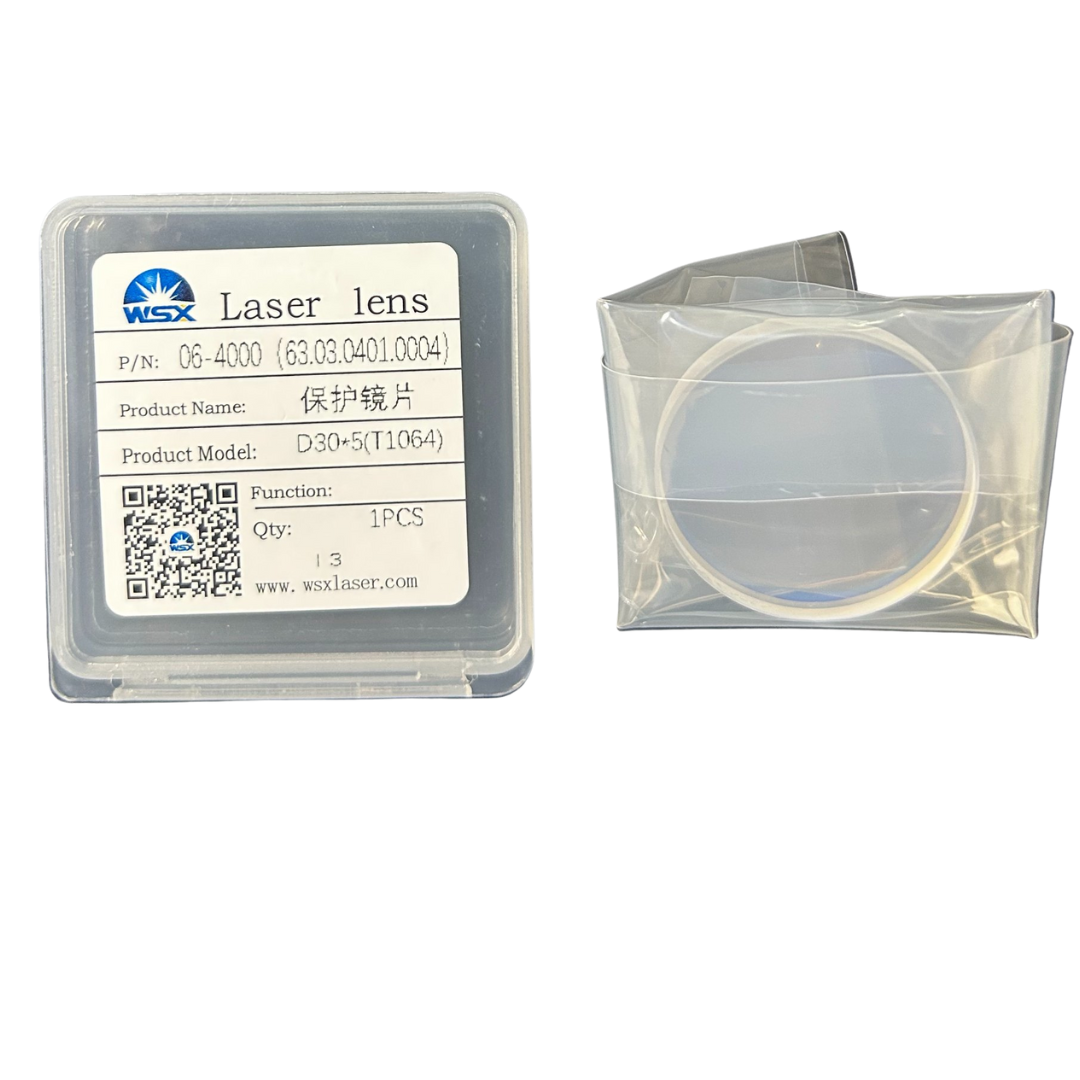

The WSX D30×5mm protective lens is an essential optical component used in WSX laser cutting heads to protect internal focusing and collimating lenses from contamination by smoke, slag, and laser reflections. It ensures stable performance, extended laser head life, and consistent cutting quality.
📋 Specifications
| Parameter | Specification |
|---|---|
| Lens Size | Ø30mm (Diameter) × 5mm (Thickness) |
| Material | Fused Silica / Quartz |
| Surface Quality | 10/5 Scratch-Dig |
| Coating Type | Anti-Reflection (AR) Coated |
| Wavelength Range | 1030–1090nm (optimized for fiber lasers) |
| Transmittance | ≥99.5% at 1064nm |
| Damage Threshold | ≥15 J/cm² (at 1064nm, 10ns pulse) |
| Usage Position | Protective window (below the focusing lens) |
| Edge Finish | Precision-polished |
| Compatible Heads | WSX NC60 / WSX NC30/ WSX NC30E/ WSXNC63/ WSXNC6/ NC150/KC15A |
🛡️ Function & Benefits
-
Protects internal optics from debris, vapor, and metal splash
-
Reduces downtime and maintenance costs
-
Maintains laser beam integrity and cutting accuracy
-
Easy to replace with standard holders in WSX heads
-
Compatible with high-power lasers up to 20kW+
